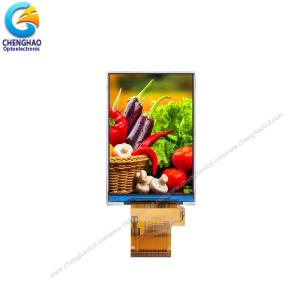

3.5 Inch Tn TFT 320x480 Color Lcd Display Module With ST7796
1. Specification of 320x480 tft lcd module
| Type: | TFT |
| Viewing Direction: | 6 o' Clock |
| Connection type: | COG+FPC |
| Operating temperature: | －30℃~70℃ |
| Storage temperature: | －30℃~80℃ |
| Driver IC: | ST7796 |
| Interface type: | MIPI/SPI/MCU/RGB |
| Brightness: | 300 cd/㎡ |
2. Description of 3.5 inch tft lcd module
ChengHao Display model CH350HV16A is a color active matrix thin
film transistor (TFT) liquid crystal display (LCD) that uses
amorphous silicon TFT as a switching device. This model is composed
of a TFT LCD panel, a driving IC, a back-light (BL), and FPC.
This TFT LCD has a 3.5 ( vertical screen ) inch diagonally measured
active display area with 320(RGB)*480 Resolution.
The driver used for this project is the ST7796S and can display 16M
colors by 24 bit R.G.B. signal input. The driver is mounted on the
glass and the interconnection via FPC including components to drive
the display module. Support SPI/RGB/MCU/MIPI Multi-interface.
This module can also be installed with touch modules, such as CTP
or RTP.
In addition, FPC can also be customized according to customer
requirements, such as modifying back-light and CTP structure,
interface definition, etc.
RoHS Compliance & Halogen Free.
3. Drawings of spi tft lcd module
Notes:
(1) Display Type : 3.5 inch TFT
(2) Viewing Direction : 6:00
(4) Polarizer Mode : Transmission / Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Qucik Detail of mipi tft lcd module
LCD type: 3.5in TFT
Dot arrangement: 320(RGB)×480 dots
Color filter array: RGB vertical stripe
Display mode:TN / Transmission / Normally White
Viewing Direction: 6 o’clock
Driver IC: ST7796S
Module size: 55.66(W)×85.04(H)×2.4(T) mm
Active area :48.96(W)×73.44(H) mm
Dot pitch: 0.153(W)×0.153(H) mm
Interface:
4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080-series system interface
16-/18-bit RGB interface
MIPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 6 White LED in serial
Weight: TBD g,
Life Time:20000 Hr
5. Application of mcu tft lcd module
