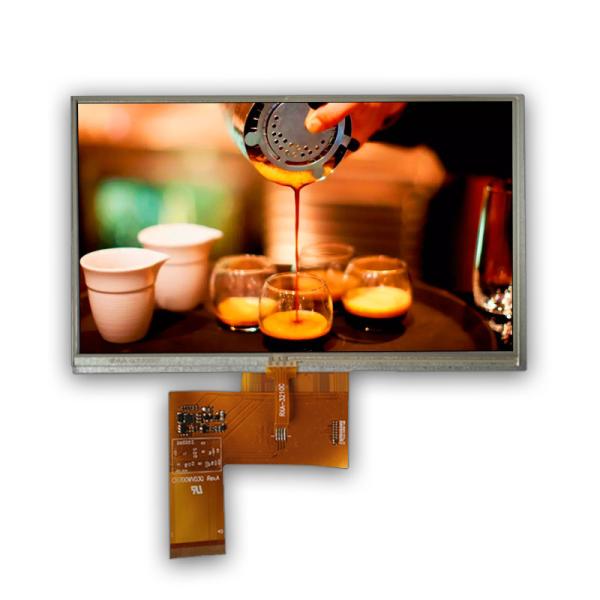

7 Inch High Backlight Resistive LCD Display Touch Screen 800*480
12 O'Clock 24-Bit RGB Interface 700cd/M2 Luminace
| MODEL NO. | CH700WV03A-T |
| Module type | 7"TFT + RTP |
| Display Mode | TN/Transmissive/Normally white |
| Number of Dots | 800*3(RGB)*480 |
| Viewing Direction | 12 o'clock |
| Gray Scale Inversion Direction | 6 o'clock |
| Module size | 164.9(W)*100.0(H)*7.1(T)mm |
| TFT Active area | 154.08(W)*85.92(H)mm |
| TFT Dot pitch | 0.1926(W)*0.1790(H)mm |
| Interface | 24-bit RGB |
| Backlight Type | White LED |
| Luminace | 700cd/m2 |
Merchant notes:
We are Lcd factory manufacturer, so all our products can be
equipped with resistive touch
screen or capacitive touch screen For customer, in which the
capacitive touch screen can
be used for air bonding or OCA bonding. If our products meet your
purchasing needs, please
contact our customer service and we will do it for you Provide
satisfactory products and services
ChengHao Display model CH700WV03B-T is a color active matrix thin
film
transistor (TFT) liquid crystal display (LCD) that uses amorphous
silicon TFT
as a switching device. This model is composed of a TFT LCD panel, a
driving
IC, a high brightness back-light, a resistive touch panel and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active
display area
with WVGA (800 horizontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax or compatible and can
display
16M colors by 24 bit R.G.B. signal input. The driver is mounted on
the glass
and the interconnection via FPC including components to drive the
display
module. Support RGB interface.
In addition, FPC can also be customized according to customer
requirements,
such as modifying FPC and back-light structure, interface
definition, etc.
RoHS Compliance & Halogen Free.
